When performing control simulation using co-simulation of RecurDyn and Simulink, there are cases where the simulation cannot be started or RecurDyn is terminated unexpectedly.

There may be various causes of this issue, but the first thing to check is the version compatibility between RecurDyn and Simulink.

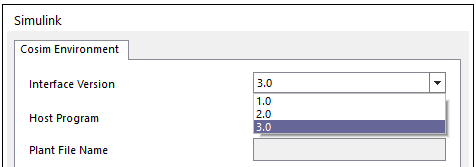

When you go to the 'CoSim Simulink' settings window in RecurDyn, you can check the three Interface Versions as shown below.



The Matlab version that guarantees compatibility is different for each interface version supported by RecurDyn, which you must check before.

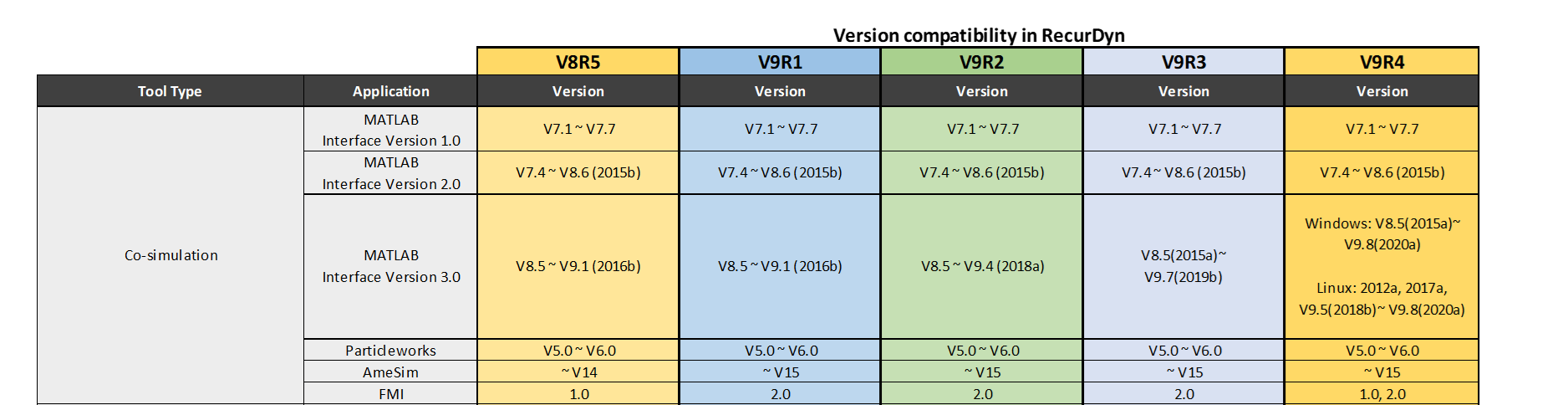

You can check the latest version of RecurDyn compatibility through the link below.

▷ Version Compatibility in RecurDyn


In addition, various Simulink-related co-simulation technical materials are provided on this site.

Search for Simulink in the search bar and check out various technical resources.
