RecurDyn's Force Display function lets you display the strength/direction of the simulated force/torque in the simulation animation.

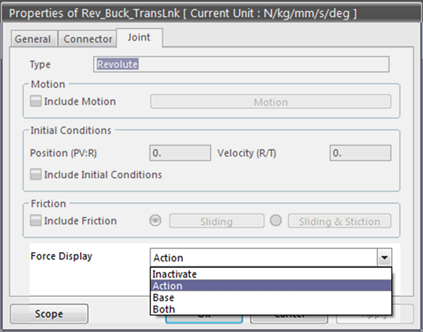

All of the properties dialog windows for joint, force, and contact entities include the Force Display option.
You can choose one of the following options to display the force.
◾Inactivate: Does not display any forces graphically.
◾Action: Displays the forces that are applied to the action body.
◾Base: Displays the forces that are applied to the base body.
◾Both: Displays the forces that are applied to both the action body and the base body.

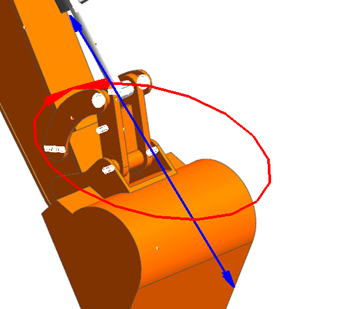

You can use these Force Display options to graphically show the forces and torques applied to joint, force, and contact entities.

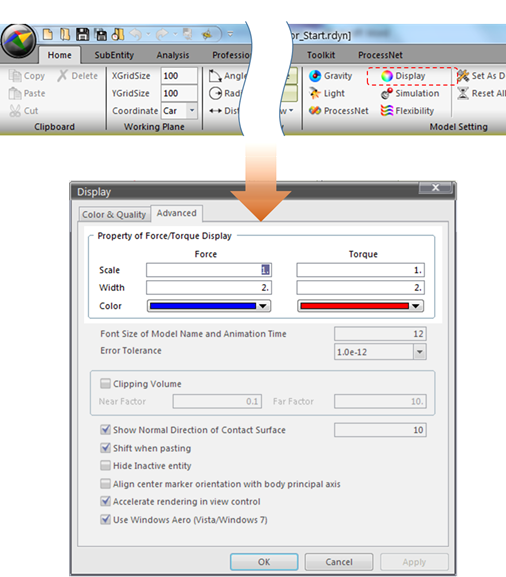

To change the display settings, click Display in the Model Setting group on the Home tab. In the Display dialog window, you can change the scale, width, and color of the force display.
