In RecurDyn, you can easily select the center point of the circle.
But how do you create a joint at the center point of a hole?
To do this, you need to create a marker at the center point of the hole first.

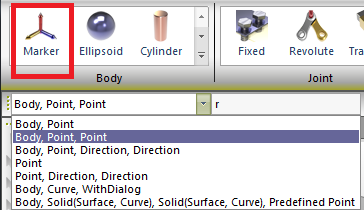

There is a creation method of a marker, ‘Body, Point, Point’. You can select 2 points, and then the marker is created at the center point between them.

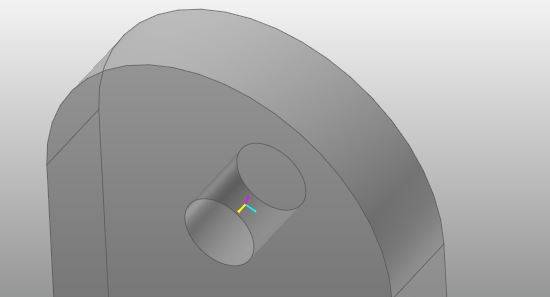

So, you just need to select 2 different center point of the circle of the hole.
After you create a marker, then you can create a joint and select the marker as the point where the joint is created.
